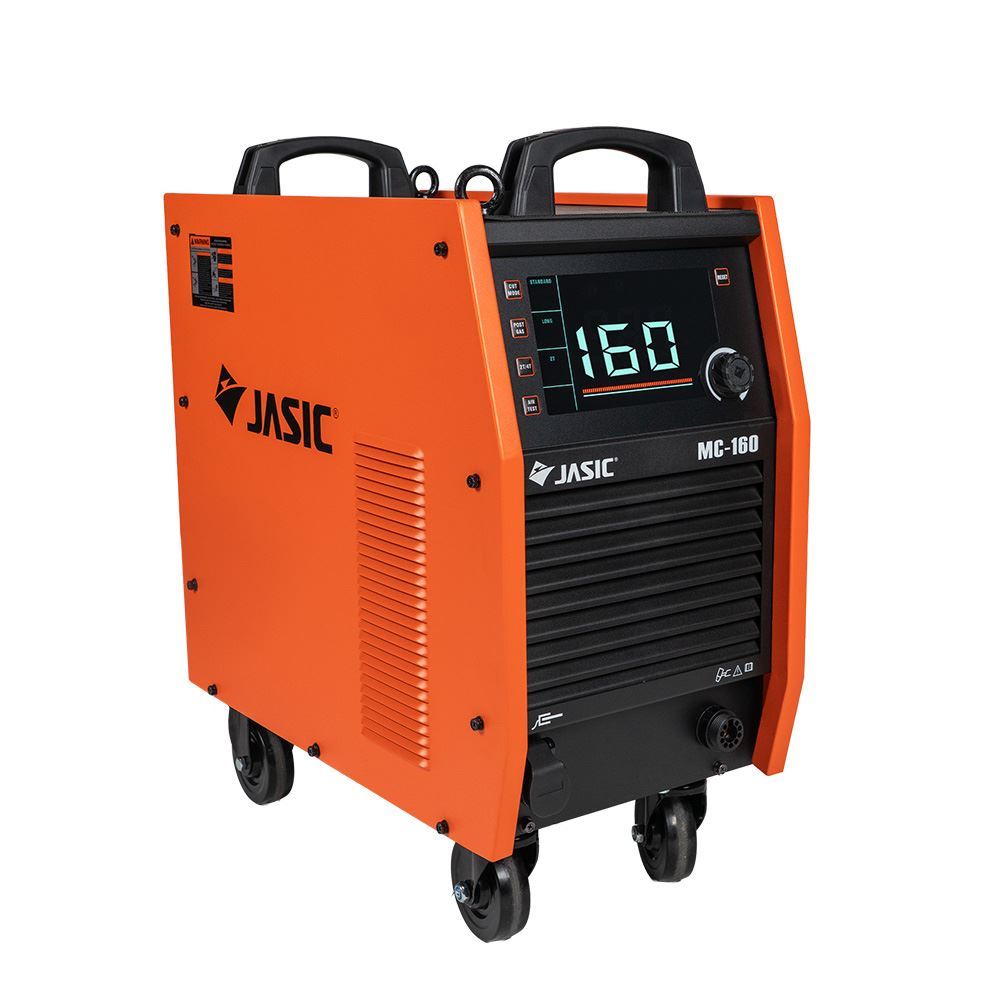

Max Cut 160 Plasma Cutter

The Jasic Max Cut 160 Plasma Cutter is a heavy-duty industrial plasma cutter designed for clean, precise cutting of thick steel with reliable performance in demanding workshop environments.

Key Features:

• IGBT inverter technology for industrial performance
• 100% duty cycle at 125A / 60% at 160A
• Clean cutting up to 40mm / severance up to 60mm
• Continuous cutting, mesh cutting and gouging functions
• NON-HF arc ignition for CNC compatibility
• Auto-detection for edge and pierce starts
• High-definition digital display with encoder control
• Dust-free sealed air passage system
• Fan-on-demand cooling system
• 2T/4T torch trigger control
• Overcurrent and overheat protection

Technical Specifications:

• Input Voltage: 400V AC (3-phase), 50/60Hz
• Input Power: 29kVA
• Ieff: 33A
• Current Range: 30–160A
• Duty Cycle: 160A @ 60% / 125A @ 100%
• Cutting Capacity: 40mm (clean) / 60mm (severance)
• Efficiency: 89%
• Power Factor: 0.8
• Air Requirement: 220 L/min @ 5 Bar (73 psi)
• Protection Class: IP21S / H
• Dimensions: 706 × 349 × 717mm
• Weight: 58kg

Included:

• 6m UPH-160 cutting torch
• Work return lead

Optional Accessories:

• Circle cutting kit (51868)
• Machine torch UPM-160 6m (03931CX)
