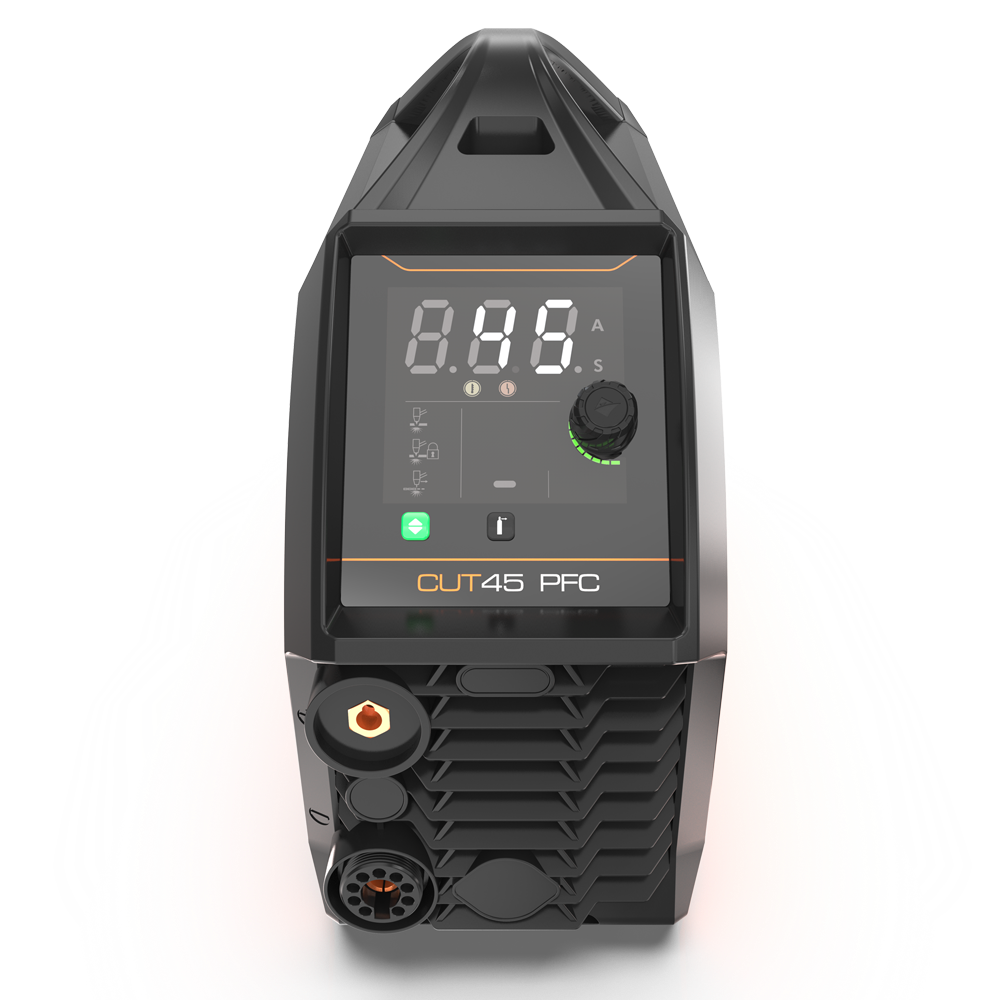

Jasic EVO CUT 45 PFC Inverter Plasma Cutter

The Jasic EVO CUT 45 is a powerful single-phase plasma cutter engineered for precision, reliability, and efficiency. Featuring wide voltage input (AC95–265V), it’s ideal for professionals working across diverse site conditions.

Key Features:

• IGBT Inverter Technology: Compact, lightweight, and energy efficient.
• SurePlasma Technology: Ensures consistent arc ignition with different torch lengths.
• ClearVision Display: Enhanced visibility for improved operator control.
• Mesh Cutting Capability: Expands cutting versatility.
• 2T/4T Function: Flexible cutting control.
• Non-HF Arc Ignition & Pilot Arc: Provides safe, interference-free operation.
• Adjustable Postflow & Torch Length Settings: Optimises cutting performance.
• ABAP (Active Balancing Air Passage): Effective internal heat dissipation.
• Fan On Demand: Reduces energy consumption and internal contamination.
• Power Factor Correction (PFC): Improves energy efficiency and supports AVR generators.
• USB Type-C Port: For software updates and device charging.
• 14 Pin CNC Interface: Automation ready.
• Optional TFT Screen & Integrated Compressor: For advanced adaptability.
• Overcurrent & Overheat Protection: Ensures safety and durability.

Technical Specifications:

• Input Voltage: AC95–265V, 50/60Hz
• Input Power: 3.6kVA (AC115V), 5.3kVA (AC230V)
• Current Range: 20–45A (AC230V)
• Duty Cycle: 25% @ 40°C
• Clean Cut Capacity (Carbon Steel): 15mm @ 400mm/min (AC230V)
• Severance Capacity (Carbon Steel): 25mm (AC230V)
• Efficiency: 86%
• Power Factor: 0.99
• Protection Class: IP23S
• Dimensions: 546 x 166 x 341 mm
• Weight: 10kg

Includes:

• EVO CUT 45 Plasma Power Source
• IPT-60 Cutting Torch (6m)
• Earth Return Lead (3m)
