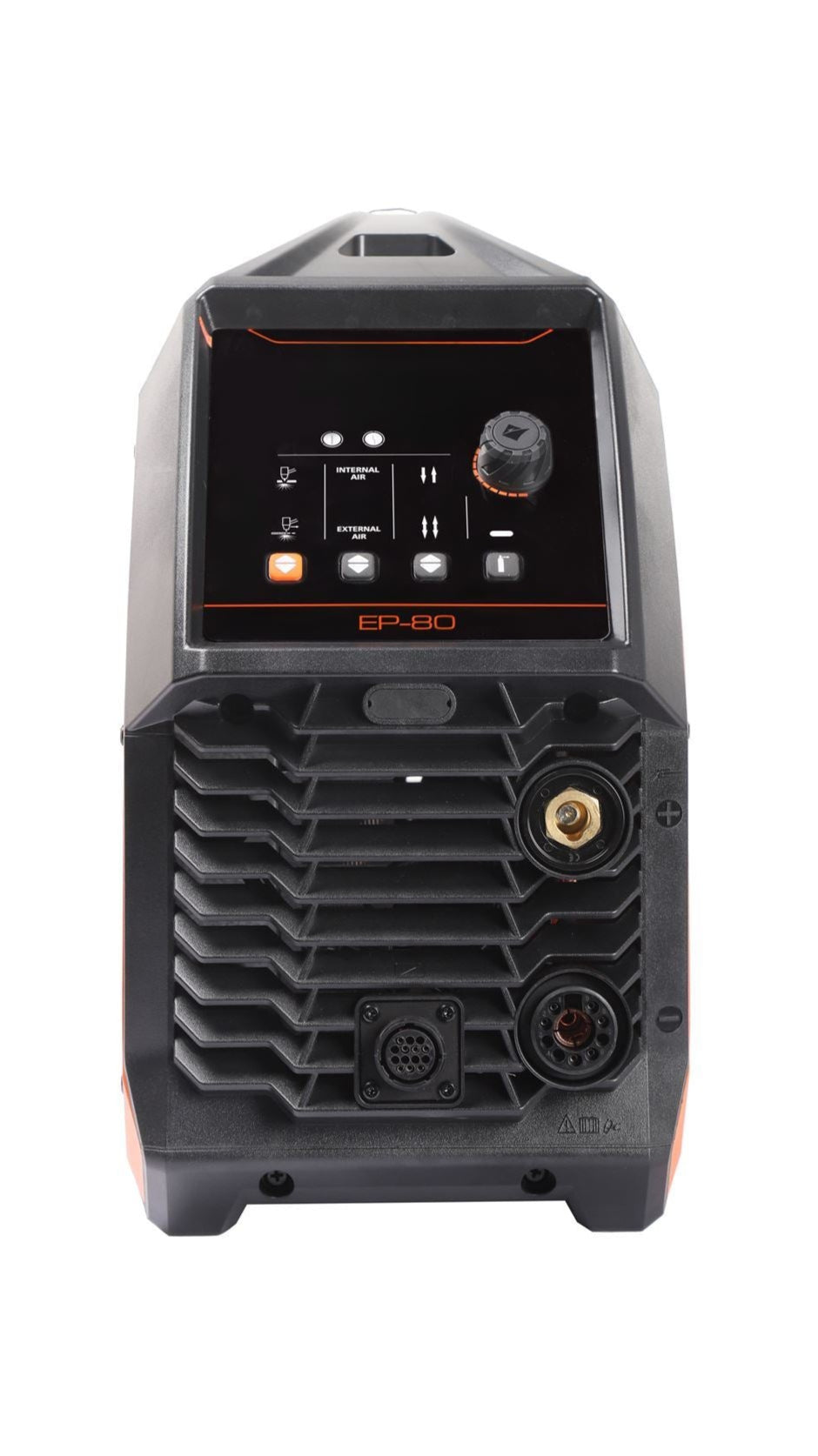

Jasic EVO CUT 80 Inverter Plasma Cutter

The Jasic EVO CUT 80 is a robust, high-performance 3-phase plasma cutter designed for precision cutting of carbon steel and other metals in industrial environments.

Key Features:

• IGBT Inverter Technology: Compact, lightweight, and energy-efficient.
• ClearVision Display: Enhanced operator visibility.
• SurePlasma Technology: Consistent arc ignition with varying torch lengths.
• Mesh Cutting Capability: For expanded applications.
• 2T/4T Function: Flexible cutting control.
• Non-HF Arc Ignition & Pilot Arc: Ensures interference-free operation.
• Adjustable Postflow Time & Torch Length Settings: For optimal performance.
• ABAP (Active Balancing Air Passage): Effective internal heat dissipation.
• USB Type-C Port: For software updates and device charging.
• 14 Pin CNC Interface: Automation ready.
• Generator Friendly: Suitable for AVR generators.
• Fan On Demand: Enhances energy efficiency.
• Overcurrent & Overheat Protection: For operator safety.

Technical Specifications:

• Input Voltage: 3PH, 400V ±15%, 50/60Hz
• Input Power: 12.5kVA
• Current Range: 20–80A
• Duty Cycle: 80A @ 40%
• Clean Cut Capacity (Carbon Steel): 25mm @ 400mm/min
• Severance Capacity (Carbon Steel): 35mm
• Pierce Cut: 20mm
• Minimum Air Pressure: 5 Bar (73 psi)
• Minimum Gas Flow: 7.1CFM (200 L/min)
• Efficiency: ≥85%
• Power Factor: ≥0.9
• Protection Class: IP23S
• Dimensions: 626 x 230 x 416 mm
• Weight: 22kg

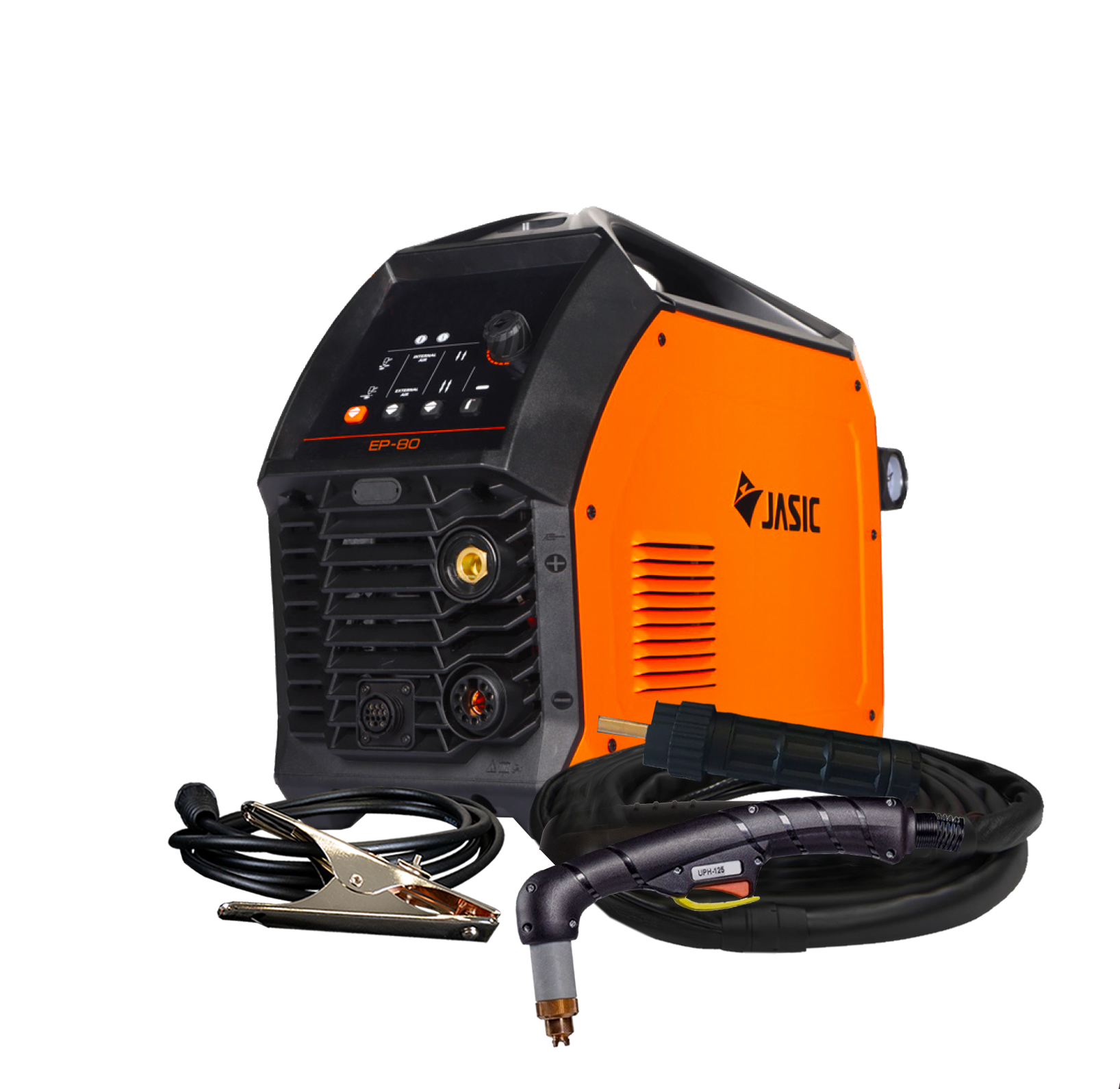

Includes:

• EVO CUT 80 Plasma Inverter
• UPH-125 Cutting Torch (6m)
• 85A Consumable Starter Pack
• 3m Earth Clamp & Lead
• USB Stick with Operating Manual
