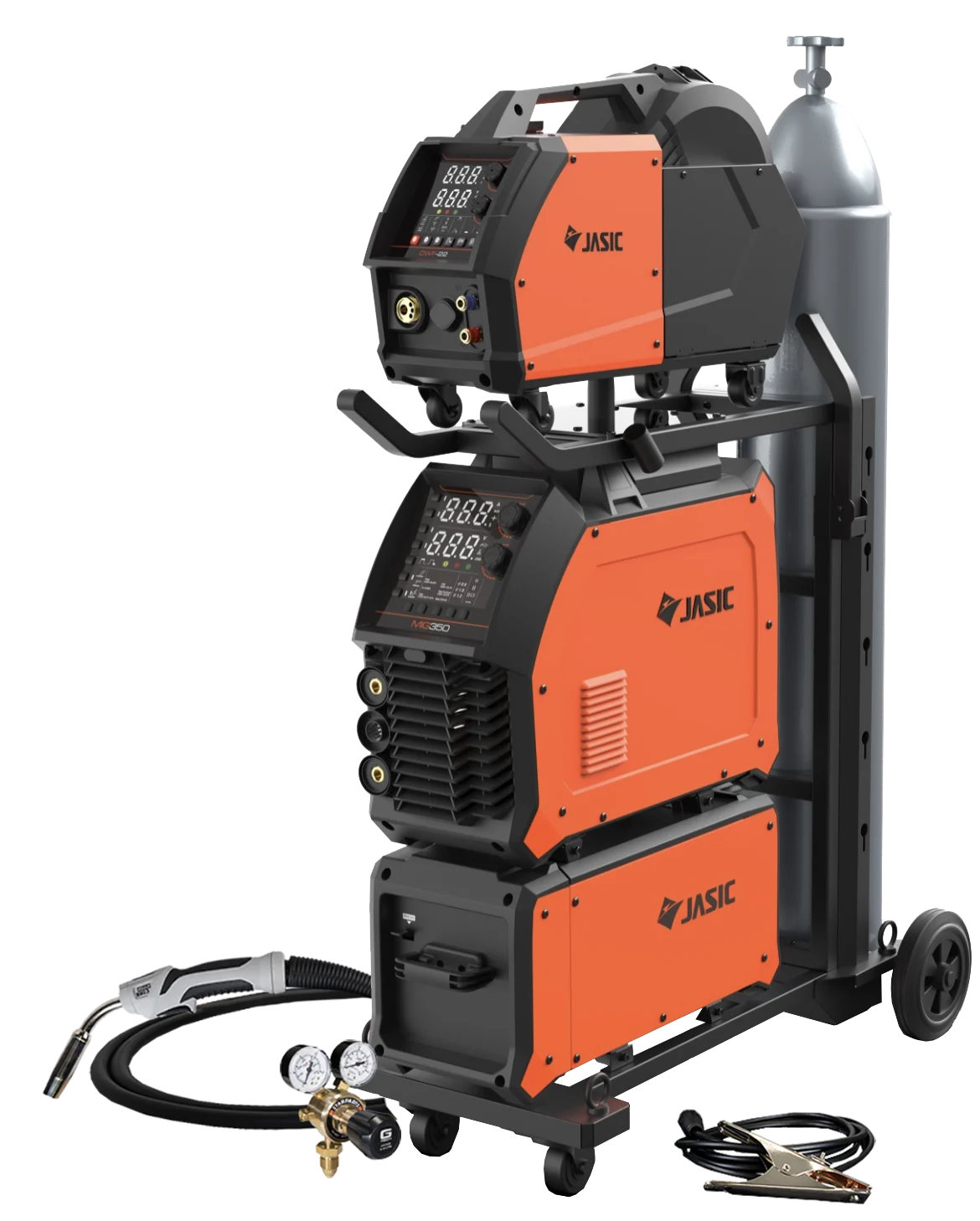

EVO MIG 500S Multi Process Air-Cooled

The EVO MIG 500S Multi Process Air Cooled is a professional inverter welder designed for MIG/MAG, MMA and DC Lift TIG welding, delivering precise control and reliable performance in heavy-duty fabrication and industrial environments.

Key Features:

• MIG/MAG, MMA and DC Lift TIG welding processes
• Separate 4-roll wire feed unit
• ClearVision HD digital display
• ARM and DSP digital inverter technology
• Synergic and manual welding modes
• 2T/4T/Cycle and Spot trigger control
• Program memory storage
• Fan-on-demand cooling system
• USB Type-C connectivity
• Wired, wireless and mobile app remote control compatibility
• Auto sleep mode for improved energy efficiency
• IP23S protection rating
• Generator friendly (AVR compatible)
• High efficiency inverter performance for industrial use

Technical Specifications:

• Input Voltage: 400V AC (3-phase), 50/60Hz
• Current Range: 20–500A
• Duty Cycle: 500A @ 40°C (industrial duty performance)
• Input Power: 29kVA
• Ieff: 33A
• Wire Feed System: 4-roll dual drive unit
• Spool Capacity: Up to 15kg
• Efficiency: ~89%
• Power Factor: 0.8
• Protection Class: IP23S
• Cooling Type: Air cooled (fan-on-demand system)
• Dimensions: 706 × 349 × 717mm
• Weight: 58kg

Included:

• MIG/Multi Process inverter power source
• Separate dual drive wire feed unit (4-roll)
• 5m or 10m interconnecting cable set
• 4m air-cooled MIG torch
• Trolley
• Integrated toolbox
• Feed rolls
• Gas regulator
• Gas hose
• Earth lead
