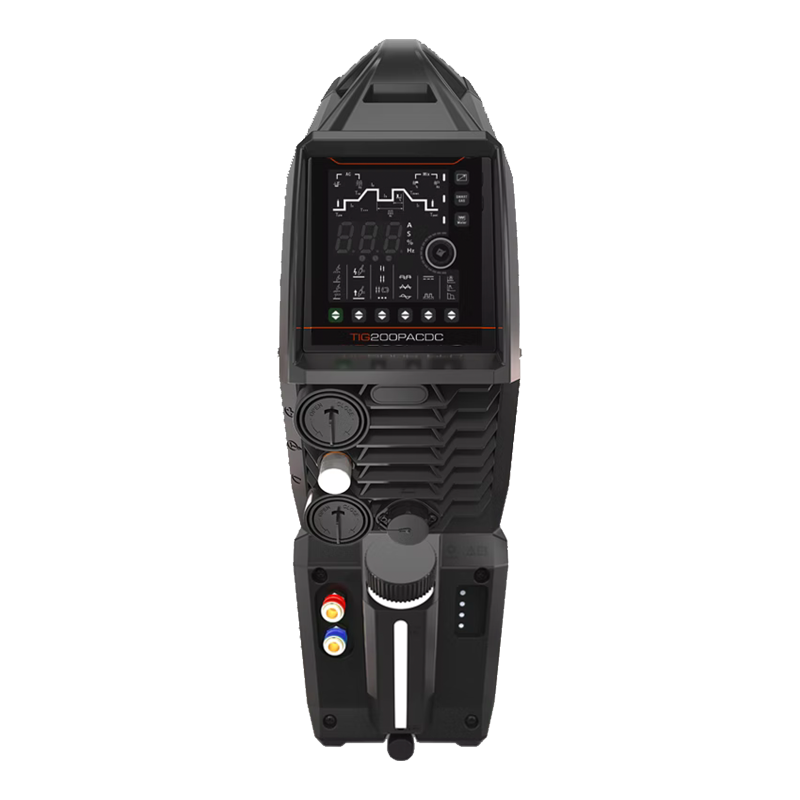

Jasic EVO TIG 200P AC/DC PFC Water-Cooled Inverter Welder

The TIG 200P AC/DC Pulse PFC is a compact, durable inverter welder designed for precision and versatility. Featuring a rugged, ergonomic design with ClearVision technology, it delivers enhanced display visibility even in direct sunlight.

Key Features:

• Multi-Process Welding: AC/DC TIG and MMA with full pulse TIG parameters.
• ClearVision Display: High-contrast screen with a 45° angled panel for better viewing.
• Multiple AC Waveforms: With mixed waveform frequency and duty cycle control.
• Dash-Arc & Smart Lift TIG: For reliable arc starts and clean welds.
• Adaptable Voltage Range: Stable performance across power variations.
• Remote Control Options: Wired or wireless for flexible operation.
• Power Factor Correction (PFC): Reduces power consumption, generator-friendly.
• ABAP Cooling & Smart Gas: Targeted cooling and up to 40% gas savings.
• VRD & Protection Systems: For safe operation in all environments.

Technical Specifications:

• Input Voltage: AC 95–265V, 50/60Hz
• Amperage Range: TIG DC 5–200A / AC 20–200A / MMA 10–160A
• Duty Cycle: TIG 25% / MMA 30% @ 40°C
• Input Power: TIG 4.7kVA / MMA 5.6kVA
• No-Load Voltage: 65V
• Efficiency: 80%
• Power Factor: 0.95
• Protection Class: IP23S
• Dimensions: 527 x 182 x 565 mm
• Weight: 20.3kg

Includes:

• AC/DC TIG Inverter Power Source
• Water Cooler
• Water-Cooled TIG Torch (4m)
• MMA Leads
• Argon Regulator
