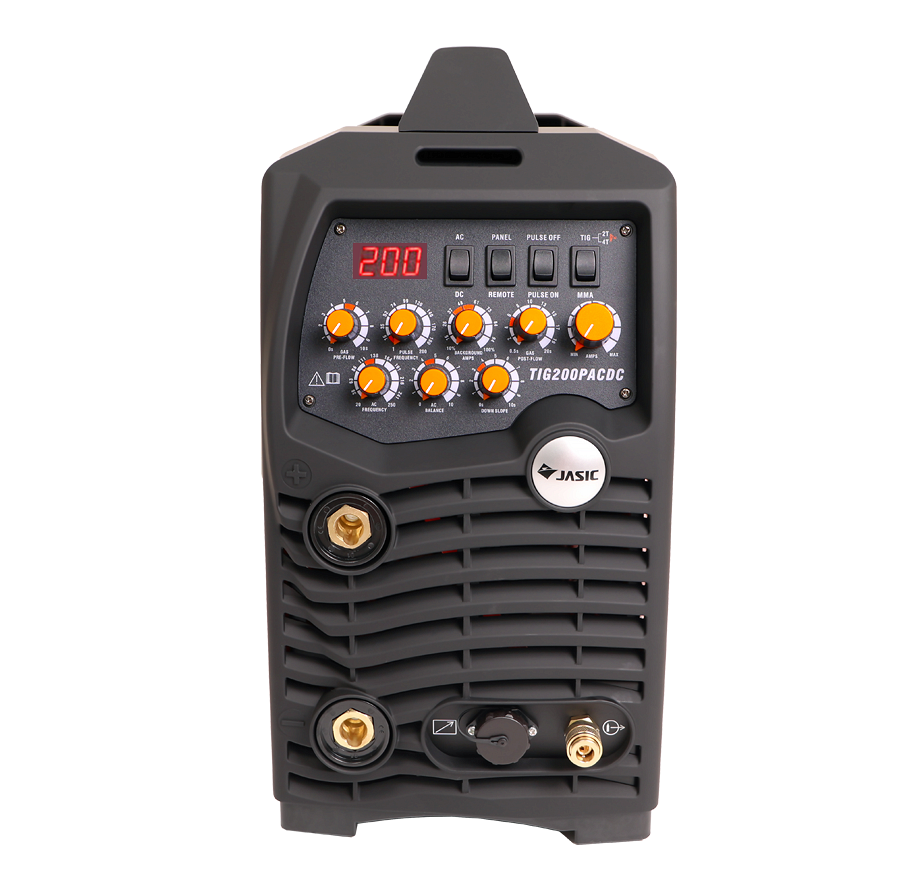

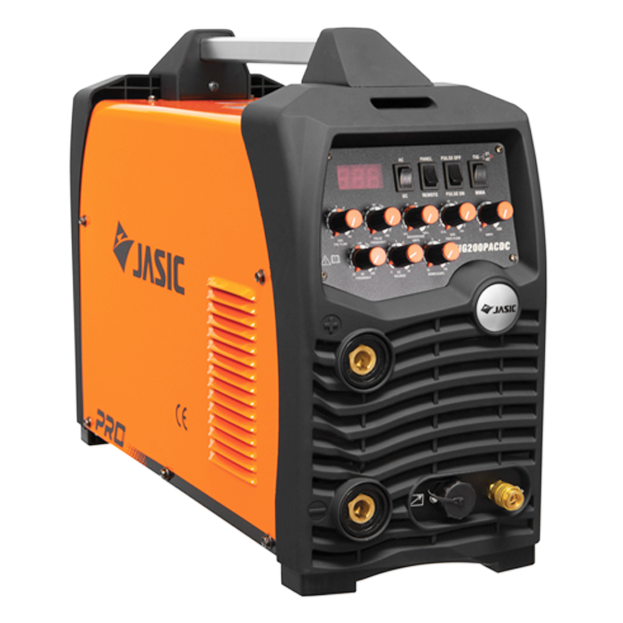

Jasic TIG 200A AC/DC Inverter Welder

The Jasic TIG 202A AC/DC Pulse is a compact, lightweight inverter welder designed for professionals needing portability without sacrificing performance. Ideal for TIG welding aluminium, stainless steel, and mild steel with stable, precise results.

Key Features:

• Pulse TIG AC/DC: Analog control with digital display for accuracy.
• HF Arc Ignition: Reliable starts for clean welds.
• Adjustable Parameters: Pre/post flow, up/down slope, pulse duty, and cleaning width.
• Peak Current & Pulse Frequency Control: For optimal weld quality.
• AC Wave Balance Control: For aluminium welding customisation.
• Arc Force & VRD Function: Stable MMA performance and enhanced safety.
• 2T/4T Trigger Modes: For versatile operation.
• AVR Generator Friendly: Stable use on site power supplies.

Technical Specifications:

• Input Voltage: 230V, 50/60Hz
• Input Power: 7.1kVA
• Amperage Range: TIG 5–200A / MMA 10–160A
• Duty Cycle: TIG 200A @ 25% / MMA 160A @ 30%
• No-Load Voltage: 65V (7V VRD)
• Protection Class: IP21S/B
• Dimensions: 566 x 224 x 405 mm
• Weight: 15kg

Includes:

• AC/DC TIG Inverter Power Source
• TIG Torch & Adaptor
• Gas Regulator
• Earth Return Lead
