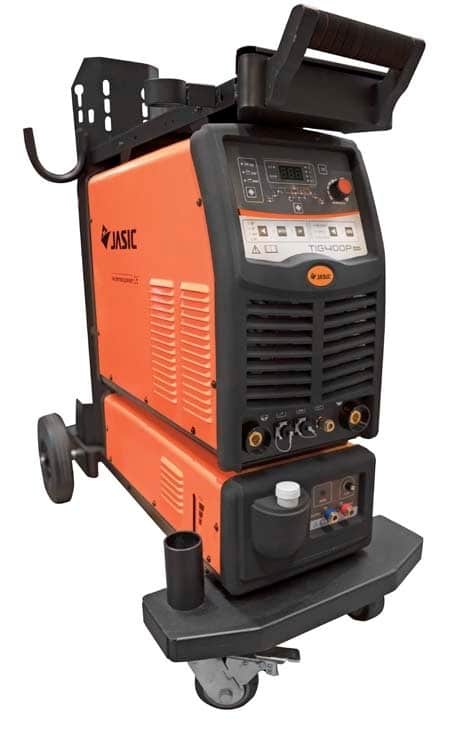

Jasic TIG 400P DC Water-Cooled Inverter Welder

The Jasic TIG 400 Pulse DC is a professional-grade inverter welder designed for precision, efficiency, and reliability. Ideal for DC TIG and MMA welding, it delivers smooth, stable arcs with full digital control for high-quality results on mild steel, stainless steel, and more.

Key Features:

• Multi-Process Welding: DC TIG and MMA (Stick) with VRD function.
• Pulse TIG Technology: For controlled heat input and cleaner welds.
• MCU Control: Ensures accuracy and consistent performance.
• HF or Lift Arc Ignition: Plus 2T/4T and spot-time modes.
• Digital Control Panel: Simple adjustments with program storage.
• Built-in Water Cooling: Maintains torch temperature during extended use.
• Heavy Duty: Up to 400A output for production welding.
• Generator Friendly: Compatible with AVR generators.

Technical Specifications:

• Input Voltage: 400V 3-phase
• Amperage Range: TIG 5–400A / MMA 30–400A
• Duty Cycle: 400A @ 50%
• Input Power: 18kVA
• No-Load Voltage: 68V
• Efficiency: 85%
• Power Factor: 0.96
• Protection Class: IP21S/F
• Dimensions: 760 x 360 x 585 mm
• Weight: 90kg

Includes:

• TIG 400P DC Inverter Power Source
• Water Cooler
• Trolley
• TIG Torch & Adaptor
• Gas Regulator
• Work Return Lead & Clamp
