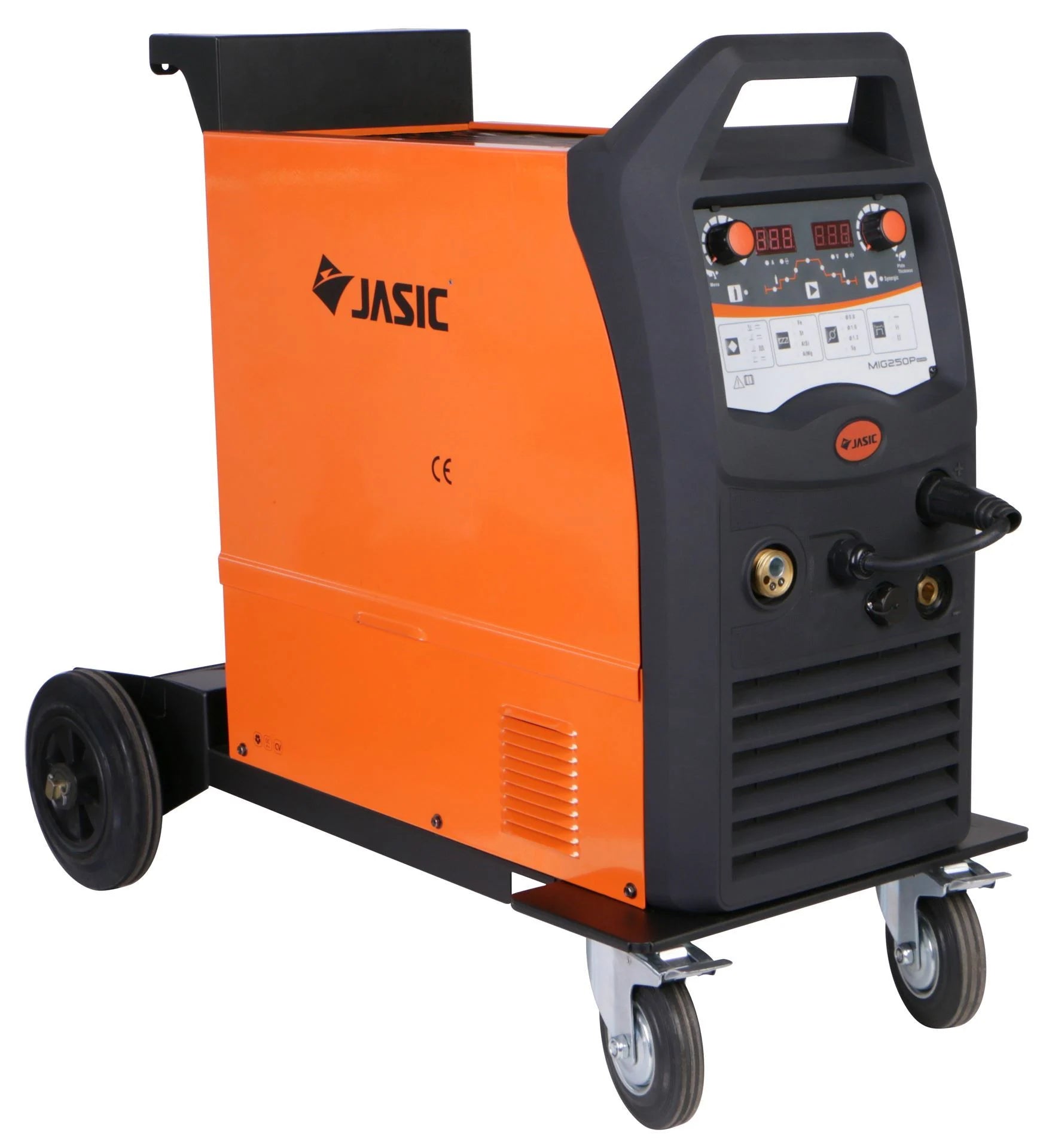

MIG 250P Compact Pulse Synergic Inverter

The Jasic MIG 250P Pulse Synergic Inverter 230V Package is a compact multi-process MIG/MAG/MMA power source designed for precision welding, offering synergic control and pulsed MIG capability for smooth, high-quality welds with reduced spatter and excellent arc stability.

Key Features:

• Synergic MIG control with pre-loaded welding programs
• Pulsed MIG mode for high-quality, low-spatter welds
• MIG/MAG, MMA, Lift TIG and DC welding capability
• Four-roll drive wire feed system
• 2T/4T trigger operation modes
• Adjustable inductance control for arc tuning
• Gas selection and wire diameter selection functions
• Electronic inductance adjustment
• On-demand cooling fan system
• Stable arc with excellent weld bead formation
• Auto compensation for mains voltage fluctuation
• Overcurrent and overload protection systems
• AVR generator friendly operation

Technical Specifications:

• Input Voltage: 230V ±15% (Single Phase)
• Ieff: 29.2A
• Input Power: 9.13 kVA
• Current Range: 40–250A
• Voltage Adjustment Range: 13.5–36V
• VRD (MMA): 15V
• Duty Cycle @ 40°C: 250A @ 40% (MIG/TIG) / 220A @ 40% (MMA)
• No-Load Voltage: 75V
• Wire Speed Range: 1.5–16 m/min
• Efficiency: 82%
• Power Factor: 0.76
• Protection Class: IP21S / F
• Dimensions: 895 × 455 × 760 mm
• Weight: 49.7 kg

Included:

• MIG/MAG inverter power source (package contents vary by configuration)
